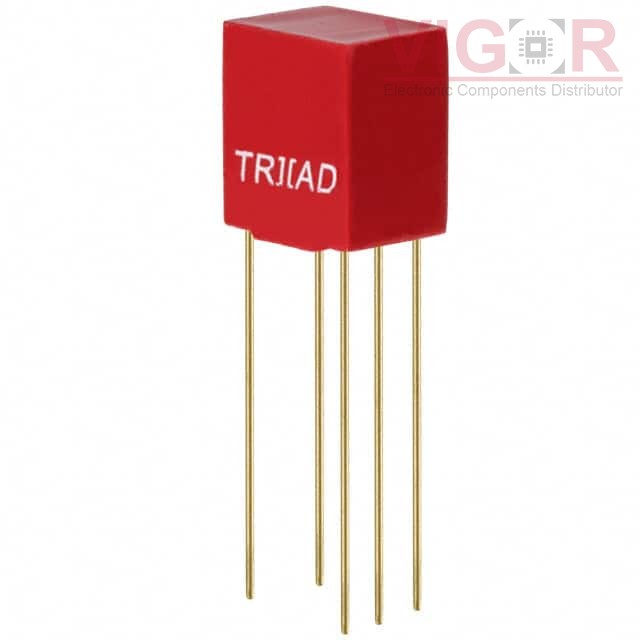

SP-32

Part No :: SP-32

Manufacturer: Triad Magnetics

Description: AUDIO TRANSFORMER

Catalog: Audio Transformers

DataSheet: SP-32 PDF

Availability: 45 pieces

Unit Price: ~~$18.08000~~

Current price of SP-32 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP-32 Specifications

Type	Description
Series:	Red-Spec
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	3.16:1
Impedance - Primary (Ohms):	500
Impedance - Secondary (Ohms):	50
DC Resistance (DCR) - Primary:	60Ohm
DC Resistance (DCR) - Secondary:	8Ohm
Transformer Type:	Audio Coupling
Frequency Range:	300Hz ~ 100kHz
Frequency Response:	±2dB
Voltage - Isolation:	1000VRMS @ 1 Second
Insertion Loss:	-
Return Loss:	-
Power Level:	50mW
Operating Temperature:	-40°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max):	0.465" (11.80mm)
Termination Style:	PC Pin
