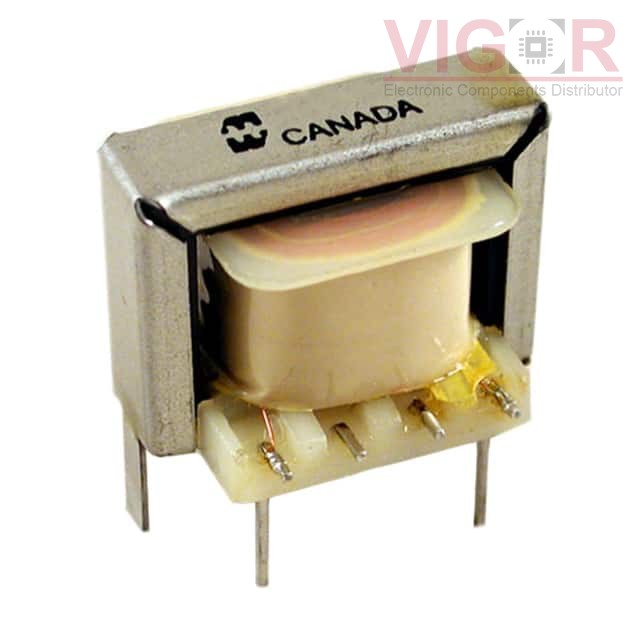

149C

Part No :: 149C

Manufacturer: Hammond Manufacturing

VIGOR # :: 1982980

Description: TRANSFORM AUDIO 160 TO 20/80 IMP

Catalog: Audio Transformers

DataSheet: 149C PDF

Country of origin: -

Date code: -

149C Specifications

Type	Description
Series:	149
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	-
Impedance - Primary (Ohms):	160
Impedance - Secondary (Ohms):	80, 20/20
DC Resistance (DCR) - Primary:	24Ohm
DC Resistance (DCR) - Secondary:	7Ohm
Transformer Type:	Economical Open Type
Frequency Range:	200Hz ~ 15kHz
Frequency Response:	±1dB
Voltage - Isolation:	-
Insertion Loss:	0.5dB
Return Loss:	-
Power Level:	200mW
Operating Temperature:	-
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	1.060" L x 0.820" W (26.92mm x 20.83mm)
Height - Seated (Max):	0.820" (20.83mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$20.94~~	~~$20.94~~
10	~~$18.48~~	~~$184.80~~
25	~~$17.86~~	~~$446.60~~
50	~~$16.02~~	~~$800.80~~
100	~~$15.40~~	~~$1 540.00~~

Current price of 149C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

149E

TRANSFRM AUDIO 300 TO 30/120 IMP

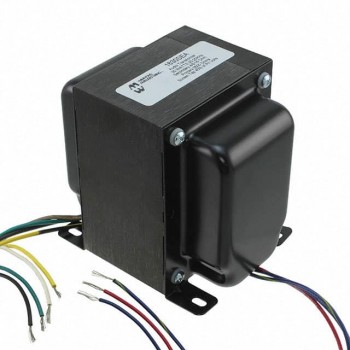

1630SEA

AUDIOPHILE TUBE OUTPUT TRANSFRMR

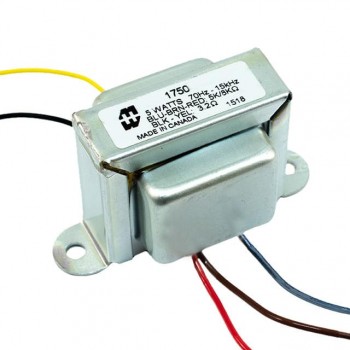

1750C
