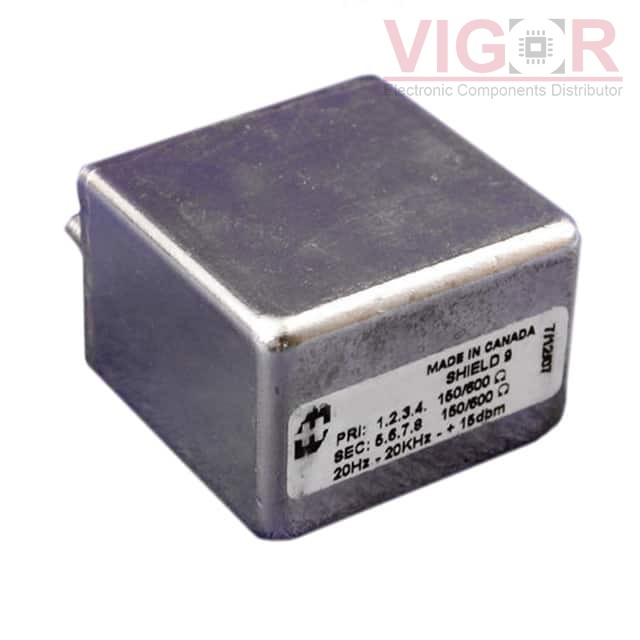

850E

Part No :: 850E

Manufacturer: Hammond Manufacturing

VIGOR # :: 4507324

Description: TRANSFR AUDIO 50/200 150/600 IMP

Catalog: Audio Transformers

DataSheet: 850E PDF

Country of origin: -

Date code: -

850E Specifications

Type	Description
Series:	850
Package:	Bulk
Part Status:	Obsolete
Turns Ratio - Primary:Secondary:	-
Impedance - Primary (Ohms):	200, 50/50
Impedance - Secondary (Ohms):	600, 150/150
DC Resistance (DCR) - Primary:	27Ohm
DC Resistance (DCR) - Secondary:	68Ohm
Transformer Type:	Broadcast Quality
Frequency Range:	20Hz ~ 20kHz
Frequency Response:	±0.5dB
Voltage - Isolation:	-
Insertion Loss:	1dB
Return Loss:	-
Power Level:	15dB
Operating Temperature:	-
Approval Agency:	-
Mounting Type:	Chassis Mount
Size / Dimension:	1.700" L x 1.200" W (43.18mm x 30.48mm)
Height - Seated (Max):	1.650" (41.91mm)
Termination Style:	Solder Lug

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 02 - Jan 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 850E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
