53070C

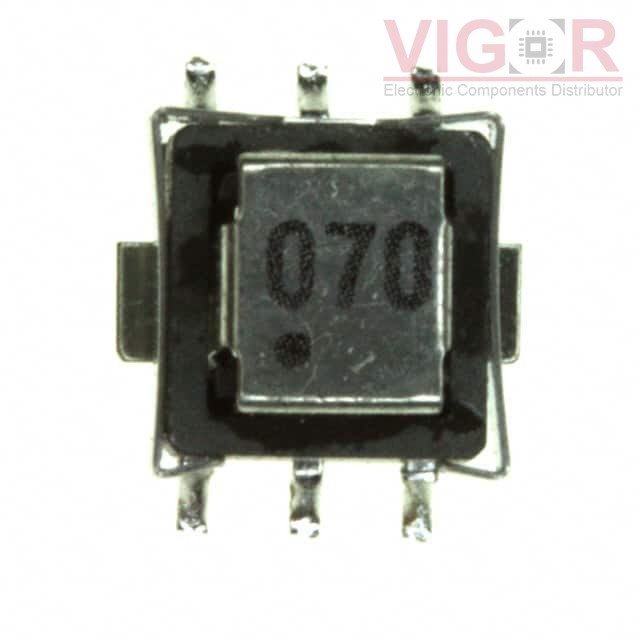

Image is for reference,
please contact us to get the real picture

Part No :: 53070C

Manufacturer: Murata Power Solutions

Description: CURR SENSE XFMR 1:70 10A SMD

Catalog: Current Sense Transformers

DataSheet: 53070C PDF

Availability: 0 pieces

Unit Price: ~~$0.77140~~

Current price of 53070C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

53070C Specifications

Type	Description
Series:	5300
Package:	Tape & Reel (TR)
Part Status:	Active
Frequency Range:	50kHz ~ 500kHz
Type:	Invasive
Current Rating (Amps):	7mOhm Primary, 4.5Ohm Secondary
Inductance:	-
ET (Volt-Time):	Surface Mount
Turns Ratio - Primary:Secondary:	0.283" L x 0.327" W (7.20mm x 8.30mm)
Current Ratio:	0.213" (5.40mm)
DC Resistance (DCR):	Gull Wing
