CST206-1A

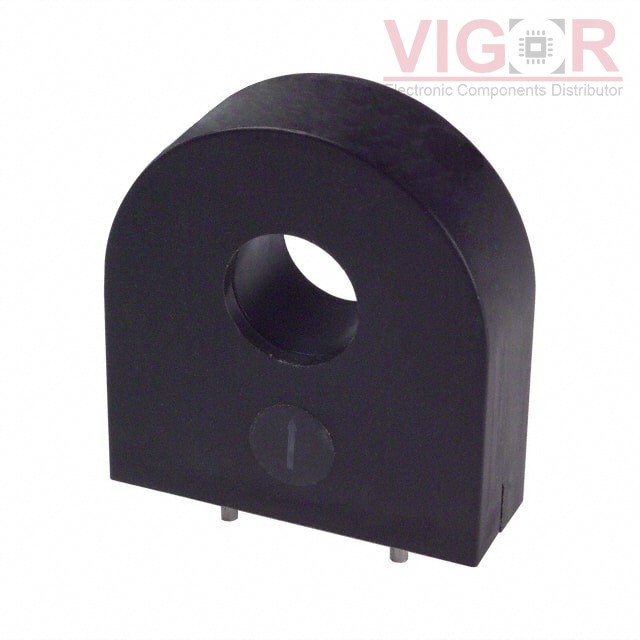

Image is for reference,
please contact us to get the real picture

Part No :: CST206-1A

Manufacturer: Triad Magnetics

Description: CURR SENSE XFMR 110A T/H

Catalog: Current Sense Transformers

DataSheet: CST206-1A PDF

Availability: 1145 pieces

Unit Price: ~~$7.25000~~

Current price of CST206-1A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CST206-1A Specifications

Type	Description
Series:	CST
Package:	Bulk
Part Status:	Active
Frequency Range:	20kHz ~ 200kHz
Type:	Non-Invasive (Solid Core)
Current Rating (Amps):	110 A
Inductance:	14 mH
ET (Volt-Time):	2000VµS
Turns Ratio - Primary:Secondary:	-
Current Ratio:	100:1
DC Resistance (DCR):	580mOhm Max
Ratings:	-
Mounting Type:	Through Hole
Size / Dimension:	1.075" L x 0.400" W (27.31mm x 10.16mm)
Height - Seated (Max):	1.225" (31.12mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
