P8206NLT

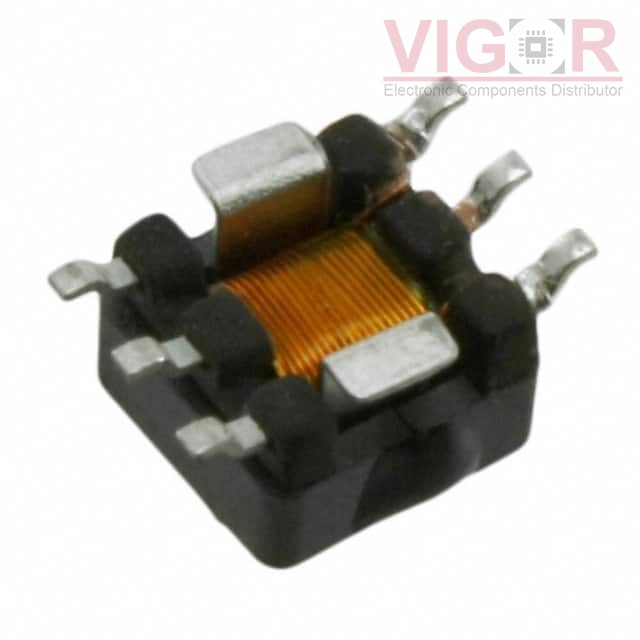

Image is for reference,
please contact us to get the real picture

Part No :: P8206NLT

Manufacturer: PulseLarsen Antenna

Description: CURR SENSE XFMR 1:60 SMD

Catalog: Current Sense Transformers

DataSheet: P8206NLT PDF

Availability: 2700 pieces

Unit Price: ~~$2.73000~~

Current price of P8206NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

P8206NLT Specifications

Type	Description
Series:	P820X
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	6mOhm Primary, 2.25Ohm Secondary
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	Surface Mount
Current Ratio:	0.284" L x 0.330" W (7.21mm x 8.38mm)
DC Resistance (DCR):	0.217" (5.50mm)
Ratings:	Gull Wing
