749251050

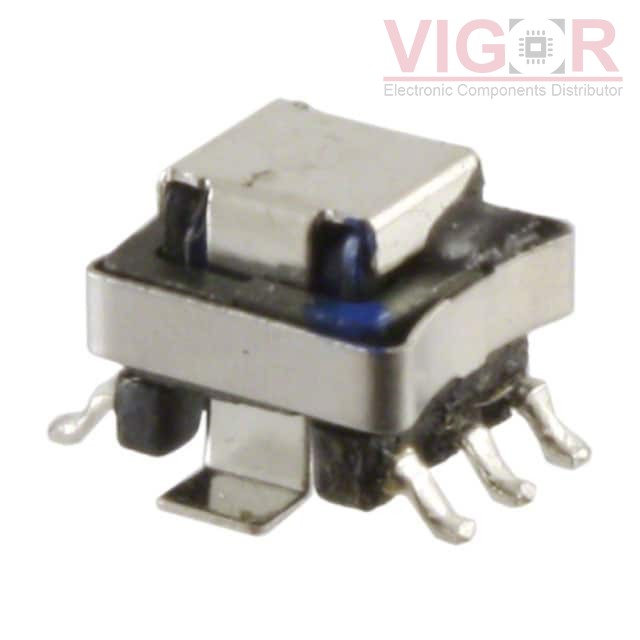

Image is for reference,
please contact us to get the real picture

Part No :: 749251050

Manufacturer: Würth Elektronik Midcom

Description: CURR SENSE XFMR 1:50 10A SMD

Catalog: Current Sense Transformers

DataSheet: 749251050 PDF

Availability: 593 pieces

Unit Price: ~~$5.01000~~

Current price of 749251050 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

749251050 Specifications

Type	Description
Series:	WE-CST
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	-
Type:	Invasive
Current Rating (Amps):	1:50
Inductance:	-
ET (Volt-Time):	6mOhm Primary, 1.4Ohm Secondary
Turns Ratio - Primary:Secondary:	-
Current Ratio:	Surface Mount
DC Resistance (DCR):	0.303" L x 0.272" W (7.70mm x 6.90mm)
Ratings:	0.210" (5.33mm)
Mounting Type:	Gull Wing

Please confirm the specifications of the products when ordering.
