53100C

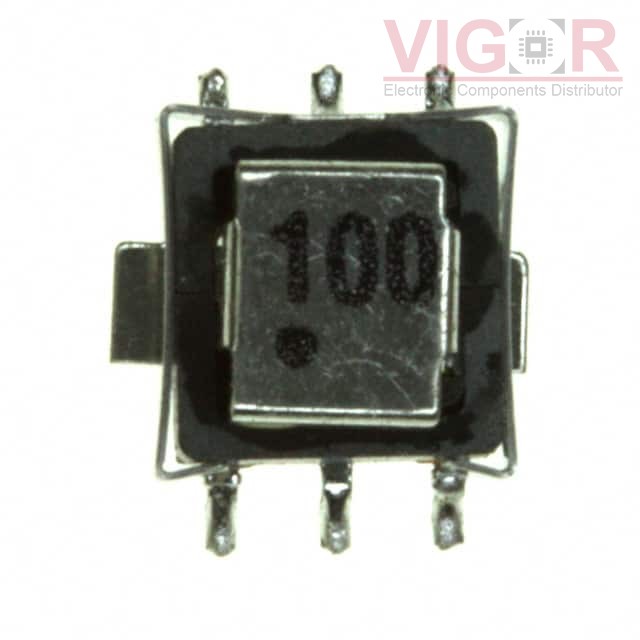

Image is for reference,
please contact us to get the real picture

Part No :: 53100C

Manufacturer: Murata Power Solutions

Description: CURR SENSE XFMR 1:100 10A SMD

Catalog: Current Sense Transformers

DataSheet: 53100C PDF

Availability: 484 pieces

Unit Price: ~~$1.76000~~

Current price of 53100C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

53100C Specifications

Type	Description
Series:	5300
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 500kHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	7mOhm Primary, 5.6Ohm Secondary
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	Surface Mount
Current Ratio:	0.283" L x 0.327" W (7.20mm x 8.30mm)
DC Resistance (DCR):	0.213" (5.40mm)
Ratings:	Gull Wing
