CSE5-100701

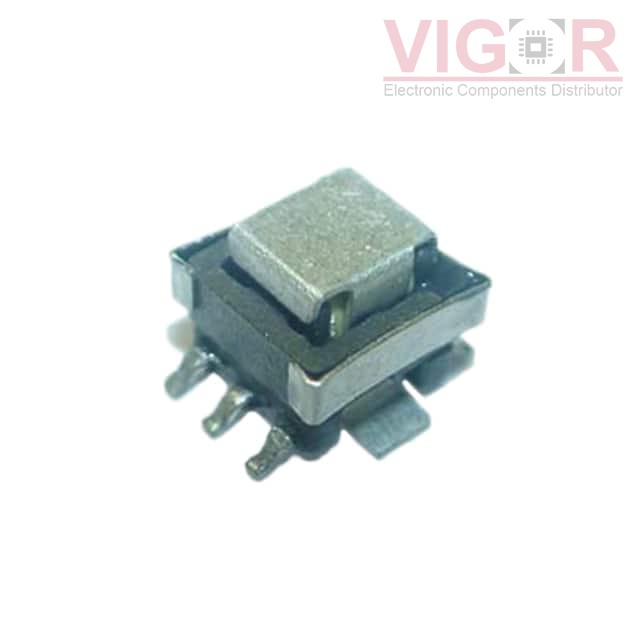

Image is for reference,
please contact us to get the real picture

Part No :: CSE5-100701

Manufacturer: Triad Magnetics

Description: CURR SENSE XFMR 1:70 10A SMD

Catalog: Current Sense Transformers

DataSheet: CSE5-100701 PDF

Availability: 531750 pieces

Unit Price: ~~$3.25000~~

Current price of CSE5-100701 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSE5-100701 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	250kHz Min
Type:	Invasive
Current Rating (Amps):	1:70
Inductance:	-
ET (Volt-Time):	4.75Ohm Secondary
Turns Ratio - Primary:Secondary:	-
Current Ratio:	Surface Mount
DC Resistance (DCR):	0.272" L x 0.303" W (6.90mm x 7.70mm)
Ratings:	0.210" (5.33mm)
Mounting Type:	Gull Wing

Please confirm the specifications of the products when ordering.
