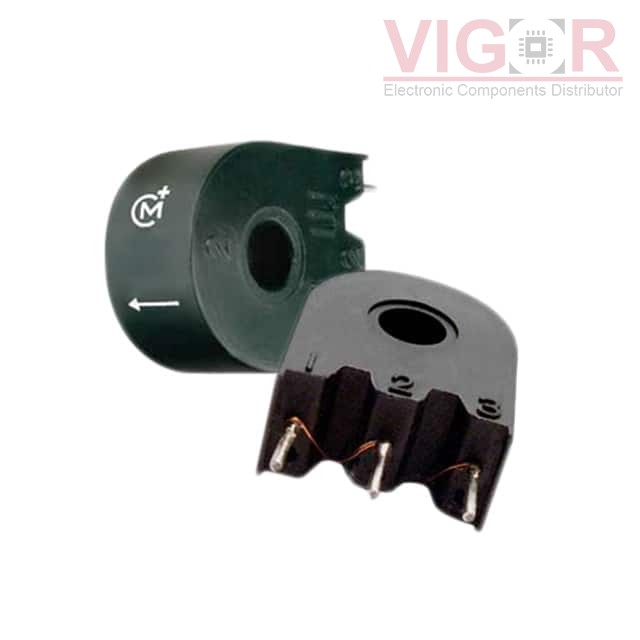

56200C

Part No :: 56200C

Manufacturer: Murata Power Solutions

Description: CURR SENSE XFMR 10A T/H

Catalog: Current Sense Transformers

DataSheet: 56200C PDF

Availability: 1382 pieces

Unit Price: ~~$1.62000~~

Current price of 56200C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

56200C Specifications

Type	Description
Series:	5600
Package:	Tube
Part Status:	Active
Frequency Range:	20kHz ~ 200kHz
Type:	Non-Invasive (Solid Core)
Current Rating (Amps):	10 A
Inductance:	72 mH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	-
Current Ratio:	200:1
DC Resistance (DCR):	1.87mOhm Primary, 2.81mOhm Secondary
Ratings:	-
Mounting Type:	Through Hole
Size / Dimension:	0.661" L x 0.350" W (16.79mm x 8.89mm)
Height - Seated (Max):	0.795" (20.19mm)
Termination Style:	PC Pin
