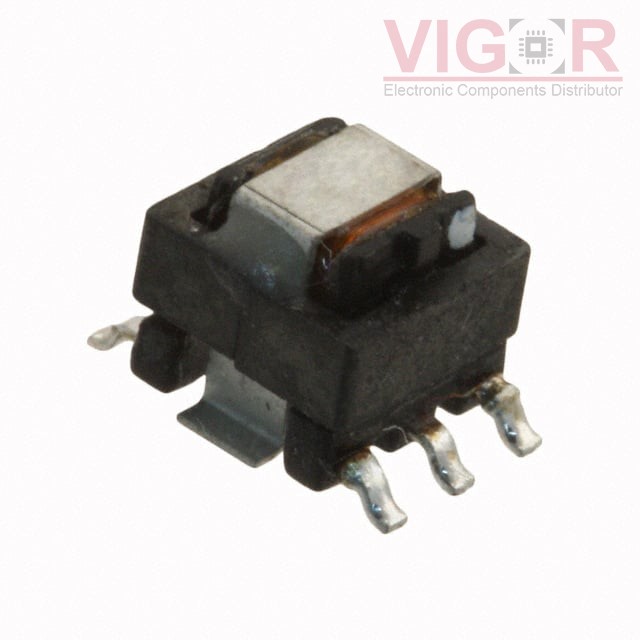

B82801B0925A200

Part No :: B82801B0925A200

Manufacturer: TDK EPCOS

Description: CURR SENSE XFMR 1:200 20A SMD

Catalog: Current Sense Transformers

DataSheet: B82801B0925A200 PDF

Availability: 451 pieces

Unit Price: ~~$2.72000~~

Current price of B82801B0925A200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82801B0925A200 Specifications

Type	Description
Series:	B82801B
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	0.6mOhm Primary, 33.24Ohm Secondary
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	Surface Mount
Current Ratio:	0.280" L x 0.320" W (7.11mm x 8.13mm)
DC Resistance (DCR):	0.200" (5.08mm)
Ratings:	Gull Wing
