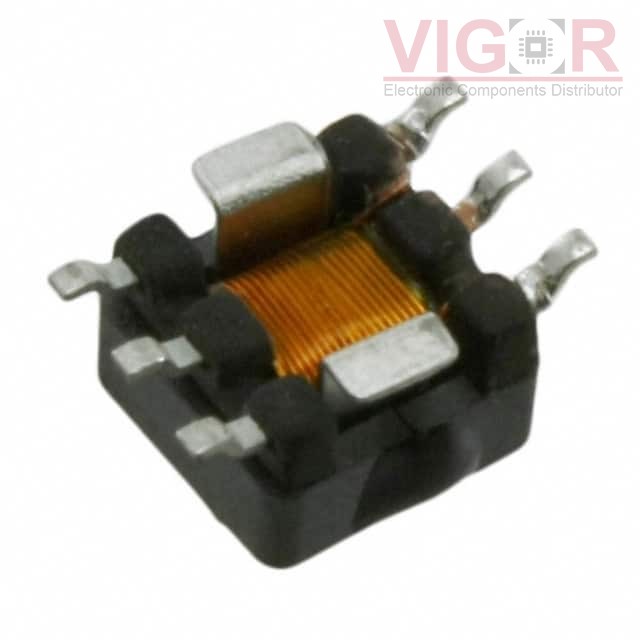

P8202NLT

Part No :: P8202NLT

Manufacturer: PulseLarsen Antenna

Description: CURR SENSE XFMR 1:20 SMD

Catalog: Current Sense Transformers

DataSheet: P8202NLT PDF

Availability: 1558 pieces

Unit Price: ~~$2.52000~~

Current price of P8202NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

P8202NLT Specifications

Type	Description
Series:	P820X
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	1:20
Inductance:	-
ET (Volt-Time):	6mOhm Primary, 550mOhm Secondary
Turns Ratio - Primary:Secondary:	-
Current Ratio:	Surface Mount
DC Resistance (DCR):	0.284" L x 0.330" W (7.21mm x 8.38mm)
Ratings:	0.217" (5.50mm)
Mounting Type:	Gull Wing

Please confirm the specifications of the products when ordering.
