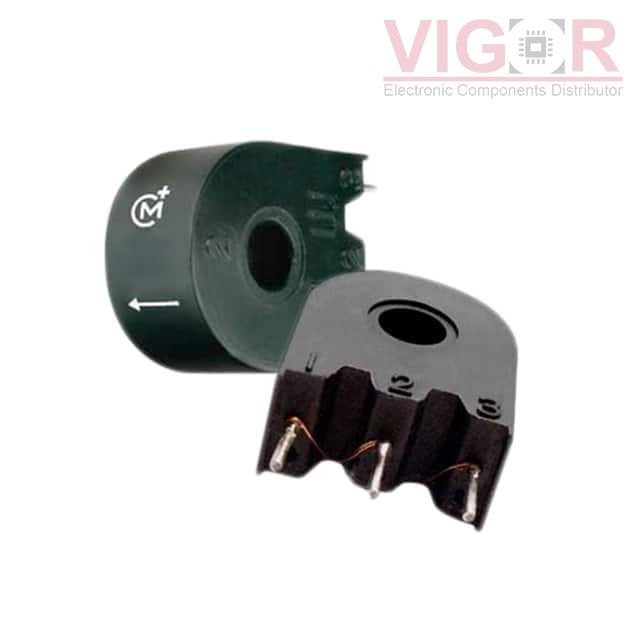

56300C

Part No :: 56300C

Manufacturer: Murata Power Solutions

Description: CURR SENSE XFMR 10A T/H

Catalog: Current Sense Transformers

DataSheet: 56300C PDF

Availability: 3 pieces

Unit Price: ~~$1.62000~~

Current price of 56300C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

56300C Specifications

Type	Description
Series:	5600
Package:	Box
Part Status:	Active
Frequency Range:	20kHz ~ 200kHz
Type:	Non-Invasive (Solid Core)
Current Rating (Amps):	300:1
Inductance:	5.73mOhm Primary, 8.59mOhm Secondary
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	Through Hole
Current Ratio:	0.661" L x 0.350" W (16.79mm x 8.89mm)
DC Resistance (DCR):	0.795" (20.19mm)
Ratings:	PC Pin

Please confirm the specifications of the products when ordering.
