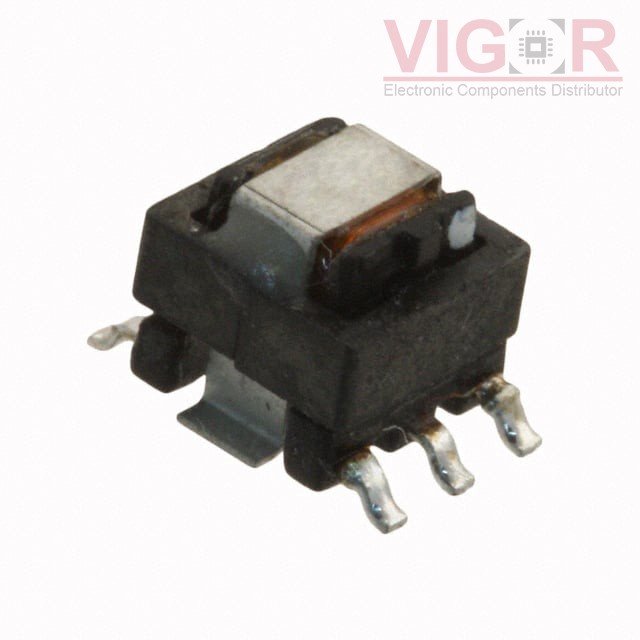

B82801B0803A020

Part No :: B82801B0803A020

Manufacturer: TDK EPCOS

VIGOR # :: 1983426

Description: CURR SENSE XFMR 1:20 SMD

Catalog: Current Sense Transformers

DataSheet: B82801B0803A020 PDF

Country of origin: -

Date code: -

B82801B0803A020 Specifications

Type	Description
Series:	B82801B
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	0.8mOhm Primary, 400mOhm Secondary
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	Surface Mount
Current Ratio:	0.280" L x 0.320" W (7.11mm x 8.13mm)
DC Resistance (DCR):	0.200" (5.08mm)
Ratings:	Gull Wing
