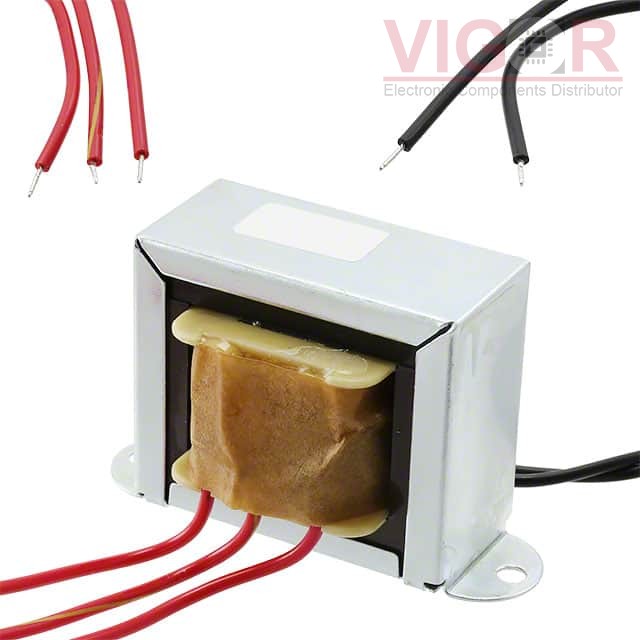

F-3118X

F-3118X

Image is for reference,
please contact us to get the real picture

Part No :

F-3118X

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 16.8VA CHAS
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
F-3118X PDF
Availability
9 pieces
Unit Price
$14.81000

Current price of F-3118X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

F-3118X Specifications
Type Description
Series:Single Secondary
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):24V
Current - Output (Max):700mA
Primary Winding(s):Dual
Secondary Winding(s):Single
Center Tap:Yes
Power - Max:16.8VA
Mounting Type:Chassis Mount
Termination Style:Wire Leads
Size / Dimension:82.55mm L x 50.80mm W
Height - Seated (Max):50.80mm
Voltage - Isolation:1500Vrms
Weight:1.3 lbs (589.7 g)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 266K35

266K35

PWR XFMR LAMINATED 52.5VA CHAS
HOT 369GXP

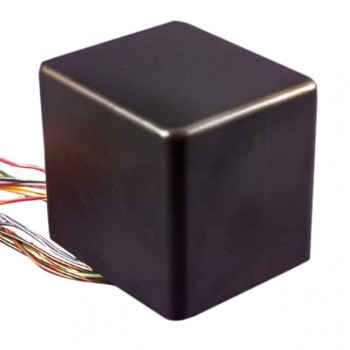

369GXP
