AHI05024

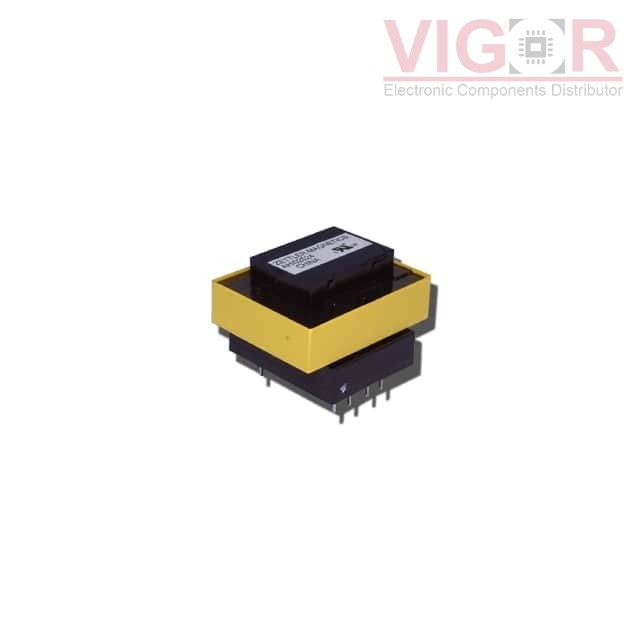

Image is for reference,
please contact us to get the real picture

Part No :: AHI05024

Manufacturer: Zettler Magnetics

Description: PWR XFMR LAMINATED 5.0VA TH

Catalog: Power Transformers

DataSheet: AHI05024 PDF

Availability: 26 pieces

Unit Price: ~~$4.50000~~

Current price of AHI05024 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AHI05024 Specifications

Type	Description
Series:	AHI050
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 12V, Series 24V
Current - Output (Max):	Parallel 420mA, Series 210mA
Primary Winding(s):	Dual, Multiple Taps
Secondary Winding(s):	Dual, Multiple Taps
Center Tap:	No
Power - Max:	5VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	41.28mm L x 36.45mm W
Height - Seated (Max):	35.56mm
Voltage - Isolation:	4200V
Weight:	-

Please confirm the specifications of the products when ordering.
