F-146XP

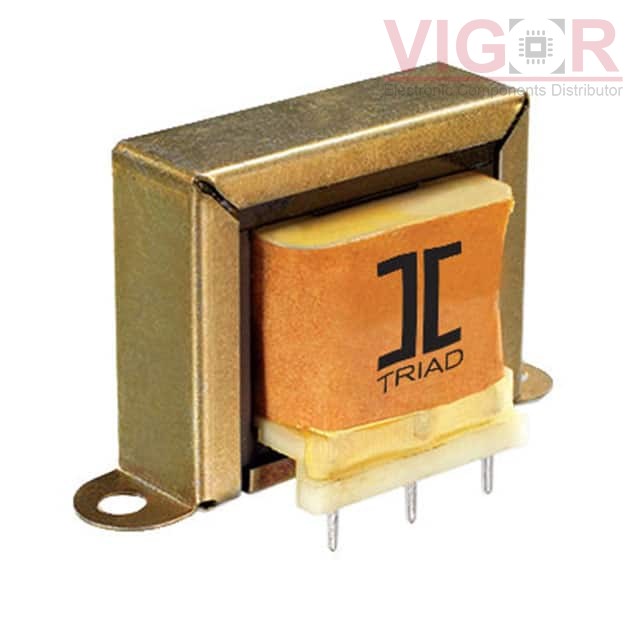

Image is for reference,
please contact us to get the real picture

Part No :: F-146XP

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 4.5VA TH

Catalog: Power Transformers

DataSheet: F-146XP PDF

Availability: 148 pieces

Unit Price: ~~$9.21000~~

Current price of F-146XP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

F-146XP Specifications

Type	Description
Series:	Single Primary
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V
Voltage - Secondary (Full Load):	Parallel 58V, Series 116V
Current - Output (Max):	Parallel 66mA, Series 33mA
Primary Winding(s):	Single
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	4.5VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	60.33mm L x 31.75mm W
Height - Seated (Max):	36.50mm
Voltage - Isolation:	1500Vrms
Weight:	0.469 lb (212.73 g)
