MGDT100100-SM

Part No :: MGDT100100-SM

Manufacturer: Vishay / Dale

VIGOR # :: 1987194

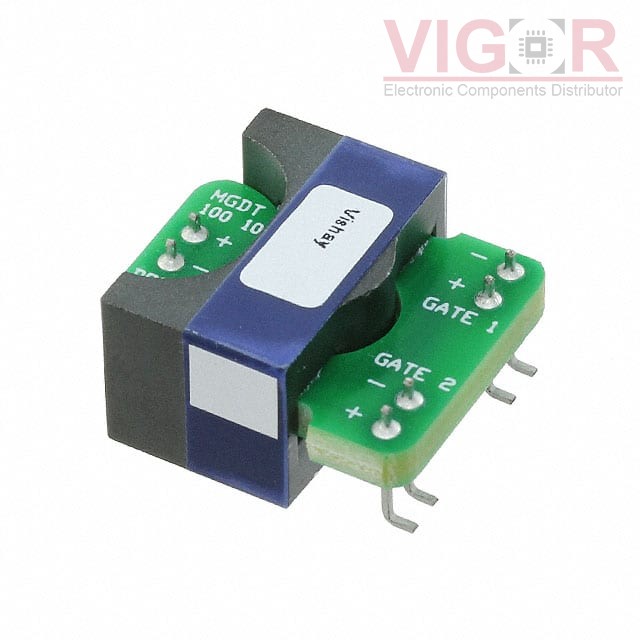

Description: PLANAR GATE-DRIVE XFMR, 1 : 1 :

Catalog: Pulse Transformers

DataSheet: MGDT100100-SM PDF

Country of origin: -

Date code: -

MGDT100100-SM Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	Gate Drive
Inductance:	240µH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1:1:1
Mounting Type:	Surface Mount
Size / Dimension:	0.810" L x 0.725" W (20.57mm x 18.42mm)
Height - Seated (Max):	0.450" (11.43mm)
Operating Temperature:	-55°C ~ 125°C
