1009C

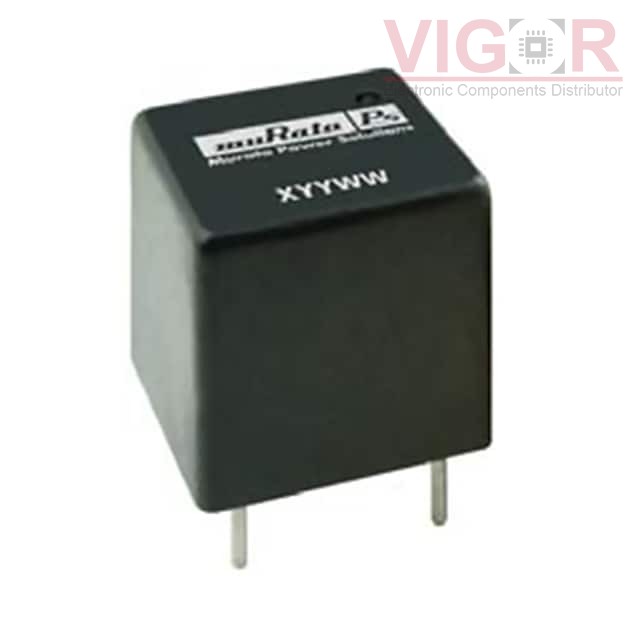

Image is for reference,
please contact us to get the real picture

Part No :: 1009C

Manufacturer: Murata Power Solutions

Description: PULSE XFMR 1:1:1 22MH

Catalog: Pulse Transformers

DataSheet: 1009C PDF

Availability: 0 pieces

Unit Price: ~~$7.24000~~

Current price of 1009C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1009C Specifications

Type	Description
Series:	1000
Package:	Tube
Part Status:	Active
Transformer Type:	General Purpose
Inductance:	22mH
ET (Volt-Time):	550VµS
Turns Ratio - Primary:Secondary:	1:1:1
Mounting Type:	Through Hole
Size / Dimension:	0.593" L x 0.593" W (15.06mm x 15.06mm)
Height - Seated (Max):	0.640" (16.25mm)
Operating Temperature:	0°C ~ 70°C
