HX1198NL

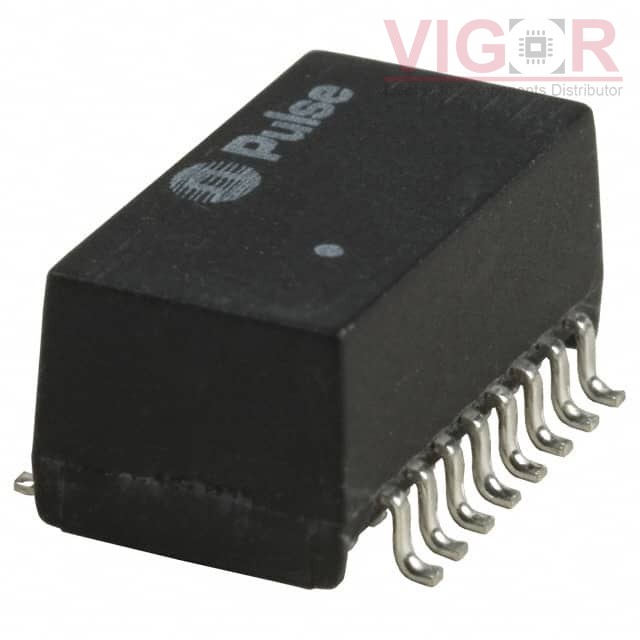

Image is for reference,
please contact us to get the real picture

Part No :: HX1198NL

Manufacturer: PulseLarsen Antenna

Description: MODULE XFRMR SGL ETHR LAN 16SOIC

Catalog: Pulse Transformers

DataSheet: HX1198NL PDF

Availability: 22 pieces

Unit Price: ~~$4.76000~~

Current price of HX1198NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HX1198NL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Transformer Type:	Isolation and Data Interface (Encapsulated)
Inductance:	-
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1:1 Transmitter, 1:1 Receiver
Mounting Type:	Surface Mount
Size / Dimension:	0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max):	0.245" (6.22mm)
Operating Temperature:	-40°C ~ 85°C
