ALAN-2301

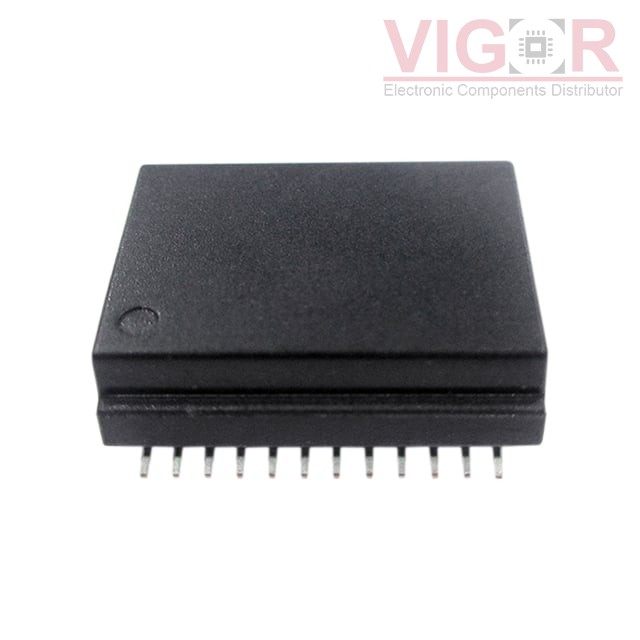

Image is for reference,
please contact us to get the real picture

Part No :: ALAN-2301

Manufacturer: Abracon

Description: PULSE XFMR 1CT:1CT 350UH

Catalog: Pulse Transformers

DataSheet: ALAN-2301 PDF

Availability: 0 pieces

Unit Price: ~~$5.52120~~

Current price of ALAN-2301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ALAN-2301 Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Active
Transformer Type:	LAN 10/100/1000 Base-T
Inductance:	350µH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1CT:1CT
Mounting Type:	Surface Mount
Size / Dimension:	0.689" L x 0.559" W (17.50mm x 14.20mm)
Height - Seated (Max):	0.219" (5.55mm)
Operating Temperature:	-40°C ~ 85°C
