HCTSM80910BAL-E1

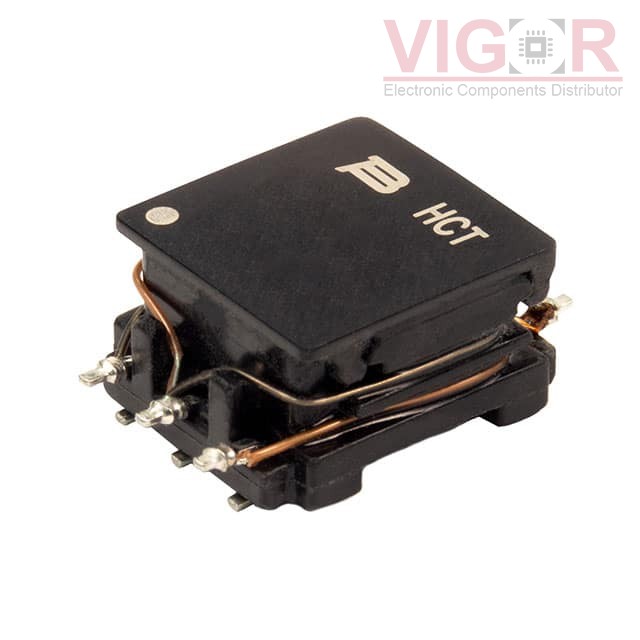

Image is for reference,
please contact us to get the real picture

Part No :: HCTSM80910BAL-E1

Manufacturer: J.W. Miller / Bourns

Description: XFRMR POWER 9:10 300UH SMD

Catalog: Pulse Transformers

DataSheet: HCTSM80910BAL-E1 PDF

Availability: 373 pieces

Unit Price: ~~$2.95000~~

Current price of HCTSM80910BAL-E1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCTSM80910BAL-E1 Specifications

Type	Description
Series:	HCT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	-
Inductance:	300µH
ET (Volt-Time):	11.0VµS
Turns Ratio - Primary:Secondary:	9:10
Mounting Type:	Surface Mount
Size / Dimension:	0.598" L x 0.425" W (15.20mm x 10.80mm)
Height - Seated (Max):	0.256" (6.50mm)
Operating Temperature:	-40°C ~ 125°C
