B82804A0264A210

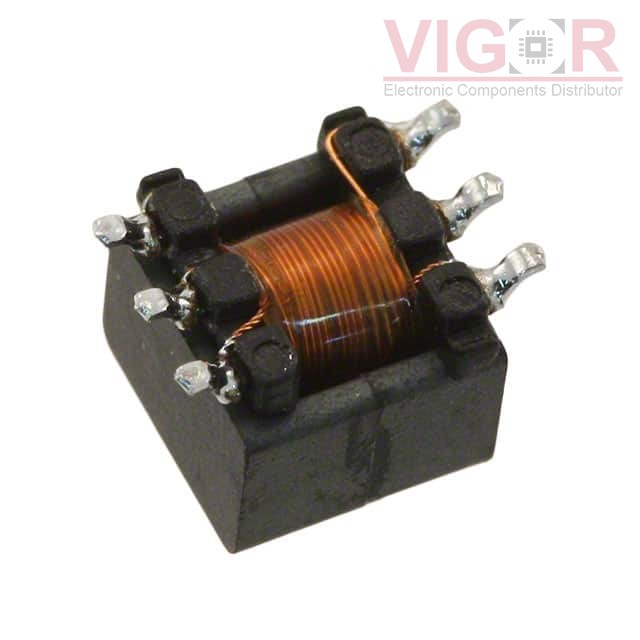

Image is for reference,
please contact us to get the real picture

Part No :: B82804A0264A210

Manufacturer: TDK EPCOS

Description: PULSE XFMR 1:1:1 264UH

Catalog: Pulse Transformers

DataSheet: B82804A0264A210 PDF

Availability: 5912 pieces

Unit Price: ~~$3.67000~~

Current price of B82804A0264A210 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82804A0264A210 Specifications

Type	Description
Series:	EP5
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	Gate Drive
Inductance:	264µH
ET (Volt-Time):	22.4VµS
Turns Ratio - Primary:Secondary:	1:1:1
Mounting Type:	Surface Mount
Size / Dimension:	0.264" L x 0.240" W (6.70mm x 6.10mm)
Height - Seated (Max):	0.213" (5.40mm)
Operating Temperature:	-40°C ~ 125°C
