B78416A2360A003

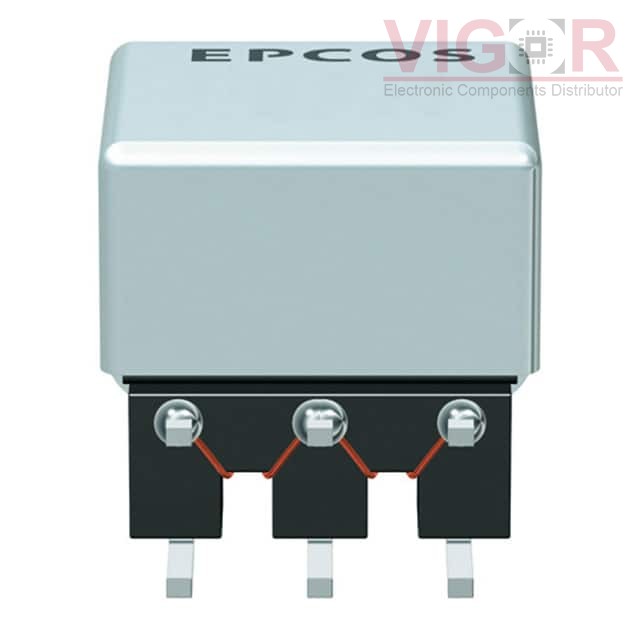

Image is for reference,
please contact us to get the real picture

Part No :: B78416A2360A003

Manufacturer: TDK EPCOS

Description: EP6 SMD TRANSFORMER

Catalog: Pulse Transformers

DataSheet: B78416A2360A003 PDF

Availability: 859 pieces

Unit Price: ~~$4.84000~~

Current price of B78416A2360A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B78416A2360A003 Specifications

Type	Description
Series:	B78416
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	-
Inductance:	3mH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1:1:8.42
Mounting Type:	Surface Mount
Size / Dimension:	0.260" L x 0.260" W (6.60mm x 6.60mm)
Height - Seated (Max):	0.280" (7.10mm)
Operating Temperature:	-40°C ~ 85°C
