760301305

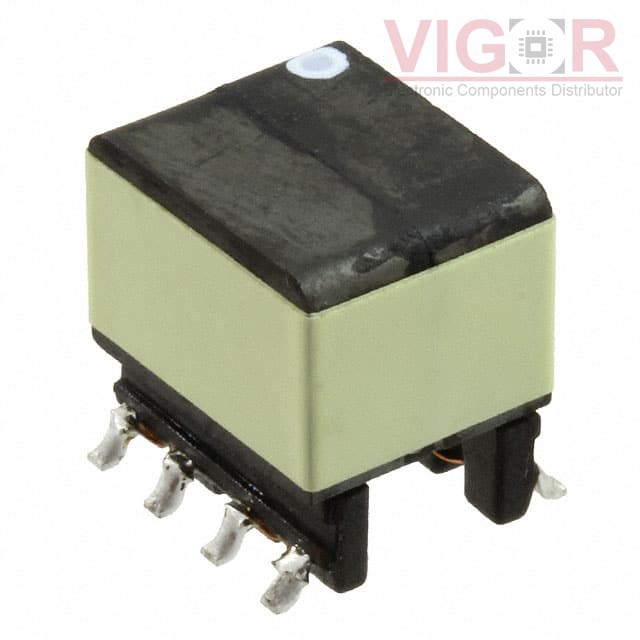

Image is for reference,
please contact us to get the real picture

Part No :: 760301305

Manufacturer: Würth Elektronik Midcom

Description: XFRMR GATE DRIVE SMD

Catalog: Pulse Transformers

DataSheet: 760301305 PDF

Availability: 285 pieces

Unit Price: ~~$7.36000~~

Current price of 760301305 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760301305 Specifications

Type	Description
Series:	WE-GDT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	Gate Drive
Inductance:	735µH
ET (Volt-Time):	99VµS
Turns Ratio - Primary:Secondary:	1.5:1:1
Mounting Type:	Surface Mount
Size / Dimension:	0.413" L x 0.413" W (10.50mm x 10.50mm)
Height - Seated (Max):	0.433" (11.00mm)
Operating Temperature:	-40°C ~ 125°C
