ALAN-505-T

ALAN-505-T

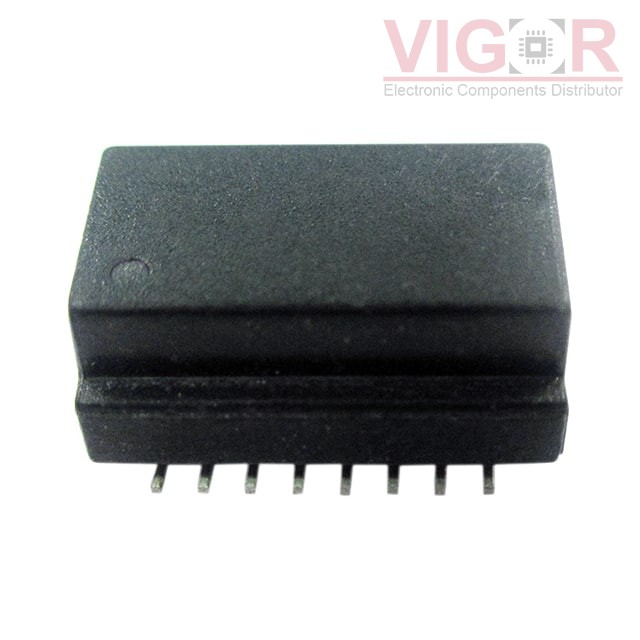

Image is for reference,
please contact us to get the real picture

Part No :

ALAN-505-T

Manufacturer
Abracon
Description
PULSE XFMR 1CT:1CT 350UH
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Sep 28 - Oct 02 2025
DataSheet
ALAN-505-T PDF
Availability
0 pieces
Unit Price
$2.25331

Current price of ALAN-505-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALAN-505-T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Transformer Type:LAN 10/100 Base-T
Inductance:350µH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:1CT:1CT
Mounting Type:Surface Mount
Size / Dimension:0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max):0.234" (5.95mm)
Operating Temperature:0°C ~ 70°C
