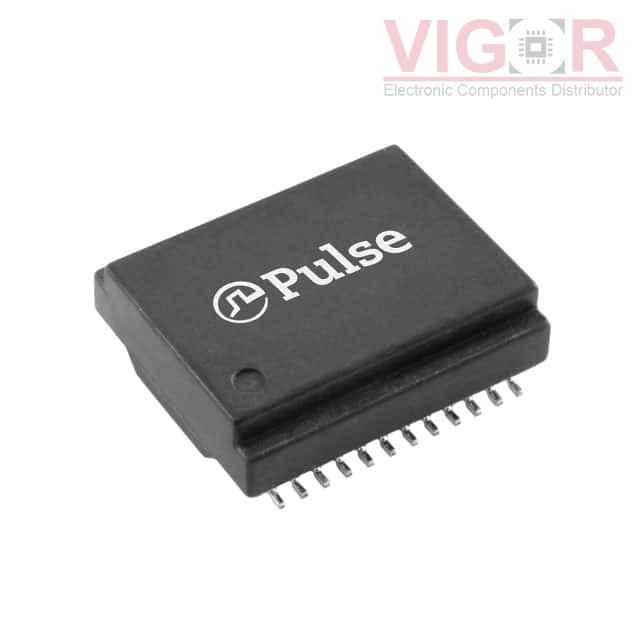

HM5004EFNL

Part No :: HM5004EFNL

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4507605

Description: PULSE XFMR 1CT:1CT TX 1CT:1CT RX

Catalog: Pulse Transformers

DataSheet: HM5004EFNL PDF

Country of origin: -

Date code: -

HM5004EFNL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Transformer Type:	LAN 10/100/1000 Base-T
Inductance:	350µH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type:	Surface Mount
Size / Dimension:	0.690" L x 0.600" W (17.53mm x 15.24mm)
Height - Seated (Max):	0.225" (5.72mm)
Operating Temperature:	-40°C ~ 105°C
