760875142

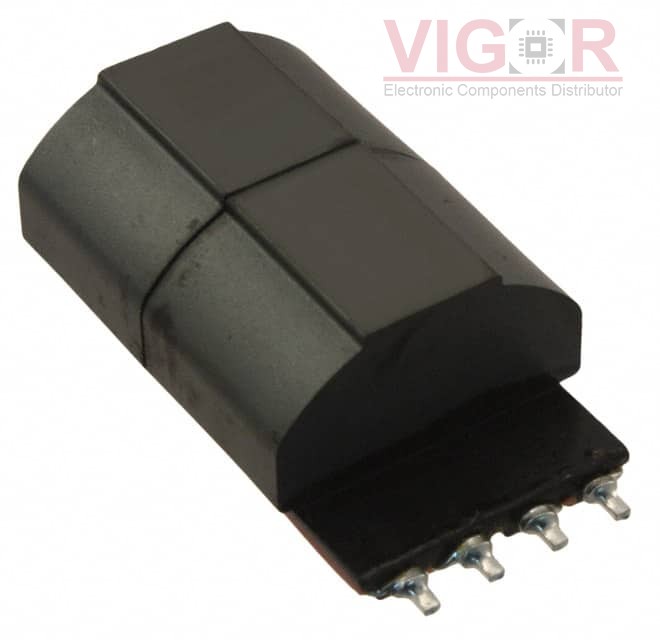

Image is for reference,
please contact us to get the real picture

Part No :: 760875142

Manufacturer: Würth Elektronik Midcom

Description: TRANS 4500V SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: 760875142 PDF

Availability: 0 pieces

Unit Price: ~~$10.84200~~

Current price of 760875142 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760875142 Specifications

Type	Description
Series:	WE-FB, MID-OLT8
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Applications:	LED Drivers, AC/DC SMPS
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	280 ~ 380V
Voltage - Auxiliary:	19V @ 20mA
Voltage - Isolation:	4500Vrms
Inductance @ Frequency:	2.5mH @ 10kHz
Frequency:	85kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.740" L x 1.319" W (18.80mm x 33.50mm)
Height - Seated (Max):	0.477" (12.12mm)
Footprint:	0.740" L x 1.437" W (18.80mm x 36.50mm)
Style:	-
