750316016

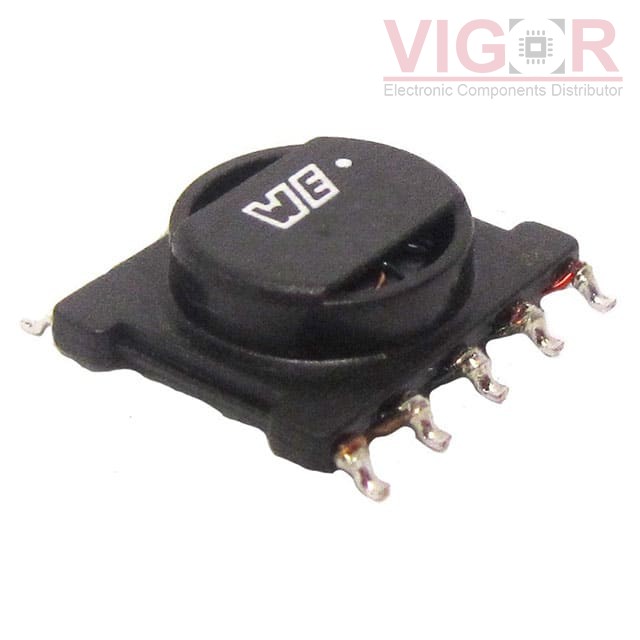

Image is for reference,
please contact us to get the real picture

Part No :: 750316016

Manufacturer: Würth Elektronik Midcom

Description: PUSH-PULL TRANSFORMER TOR5.8/3.1

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750316016 PDF

Availability: 949 pieces

Unit Price: ~~$5.71000~~

Current price of 750316016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750316016 Specifications

Type	Description
Series:	MID-PPTI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	-
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	5V
Voltage - Auxiliary:	-
Voltage - Isolation:	2500Vrms
Inductance @ Frequency:	60µH @ 10kHz
Frequency:	400kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.458" L x 0.364" W (11.63mm x 9.25mm)
Height - Seated (Max):	0.145" (3.68mm)
Footprint:	0.458" L x 0.496" W (11.63mm x 12.60mm)
Style:	-
