750811644

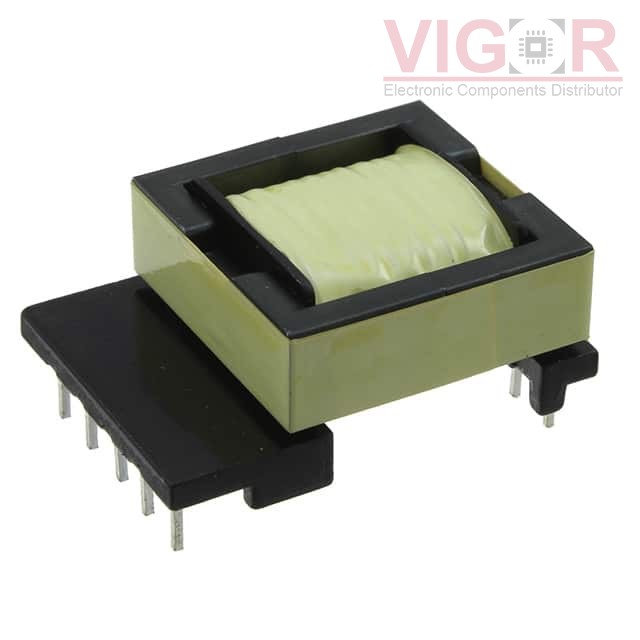

Image is for reference,
please contact us to get the real picture

Part No :: 750811644

Manufacturer: Würth Elektronik Midcom

Description: THT OFFLINE TRANSFORMER WE-UNIT

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750811644 PDF

Availability: 8 pieces

Unit Price: ~~$7.81000~~

Current price of 750811644 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750811644 Specifications

Type	Description
Series:	WE-UNIT, MID-OLEFD
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	LED Drivers, AC/DC SMPS
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	120 ~ 375V
Voltage - Auxiliary:	20V
Voltage - Isolation:	4500Vrms
Inductance @ Frequency:	800µH @ 10kHz
Frequency:	68 ~ 150kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	0.846" L x 1.142" W (21.50mm x 29.00mm)
Height - Seated (Max):	0.477" (12.12mm)
Footprint:	0.846" L x 1.142" W (21.50mm x 29.00mm)
Style:	-
