749196311

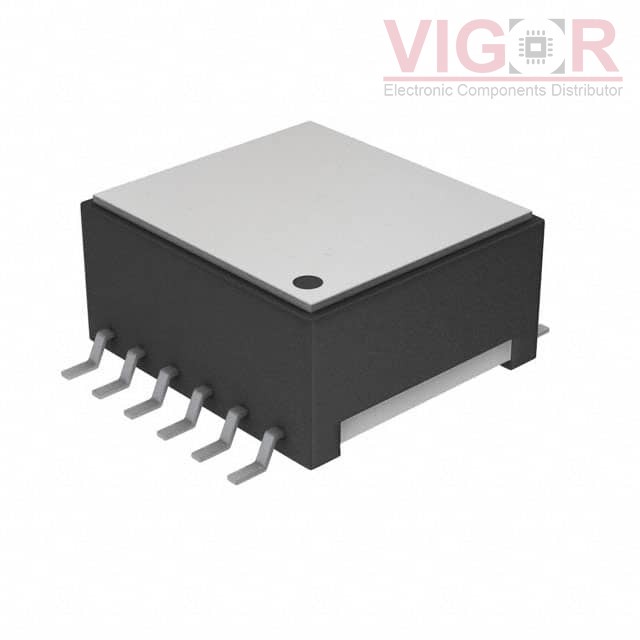

Image is for reference,
please contact us to get the real picture

Part No :: 749196311

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER 23.3UH .97A SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: 749196311 PDF

Availability: 198 pieces

Unit Price: ~~$7.33000~~

Current price of 749196311 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

749196311 Specifications

Type	Description
Series:	WE-FLEX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Configurable (For DC/DC)
Applications:	Flexible
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500VDC
Inductance @ Frequency:	23.3µH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.689" L x 0.630" W (17.50mm x 16.00mm)
Height - Seated (Max):	0.327" (8.30mm)
Footprint:	0.689" L x 0.935" W (17.50mm x 23.74mm)
Style:	-
