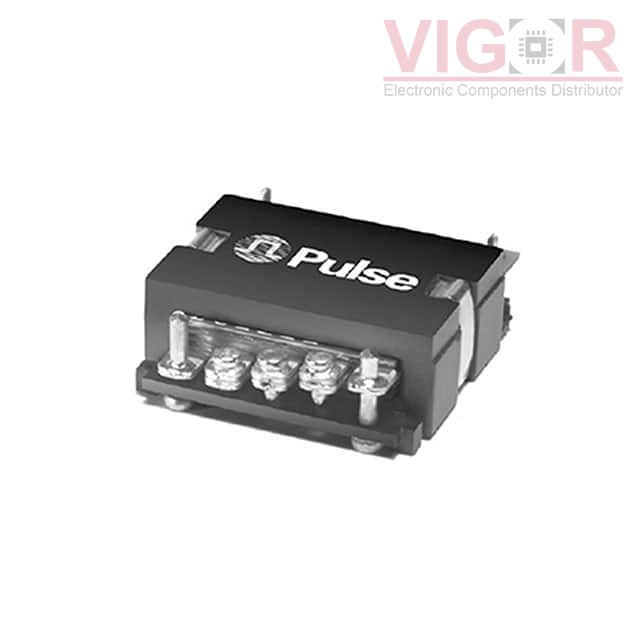

PA0808NL

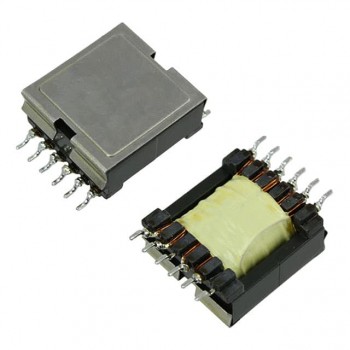

Image is for reference,
please contact us to get the real picture

Part No :: PA0808NL

Manufacturer: PulseLarsen Antenna

Description: XFMR DC/DC CONV SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: PA0808NL PDF

Availability: 0 pieces

Unit Price: ~~$10.36000~~

Current price of PA0808NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PA0808NL Specifications

Type	Description
Series:	PA08XXNL
Package:	Tray
Part Status:	Active
Type:	For DC/DC Converters
Applications:	-
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	18 ~ 76V
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	-
Frequency:	200 ~ 700kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.850" L x 0.920" W (21.60mm x 23.37mm)
Height - Seated (Max):	0.348" (8.85mm)
Footprint:	0.850" L x 0.920" W (21.60mm x 23.37mm)
Style:	Planar
