760871631

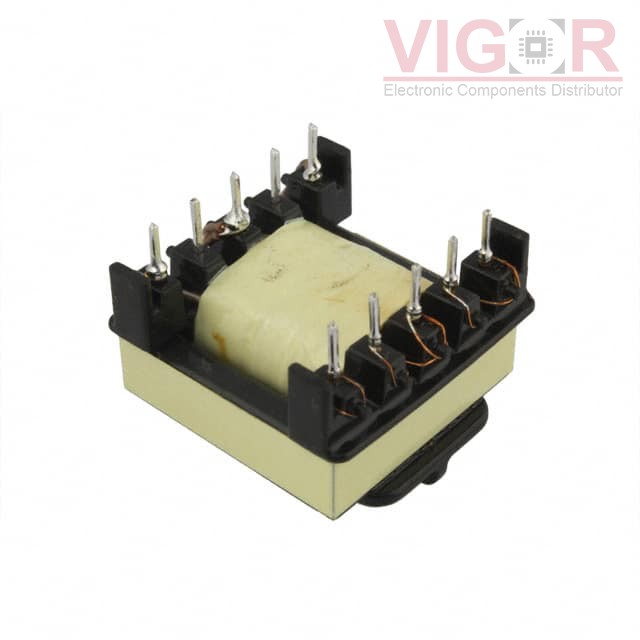

Part No :: 760871631

Manufacturer: Würth Elektronik Midcom

Description: TRANS FLYBACK NXP TEA1733 2.2MH

Catalog: Switching Converter, SMPS Transformers

DataSheet: 760871631 PDF

Availability: 0 pieces

Unit Price: ~~$9.58196~~

Current price of 760871631 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760871631 Specifications

Type	Description
Series:	WE-UNIT
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	LED Drivers, AC/DC SMPS
Intended Chipset:	TEA1733
Chipset Manufacturer:	NXP Semiconductors
Voltage - Primary:	120 ~ 385V
Voltage - Auxiliary:	12V @ 10mA
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	2.2mH @ 10kHz
Frequency:	100kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	1.150" L x 1.100" W (29.21mm x 27.94mm)
Height - Seated (Max):	0.850" (21.59mm)
Footprint:	1.150" L x 1.100" W (29.21mm x 27.94mm)
Style:	-
