749196328

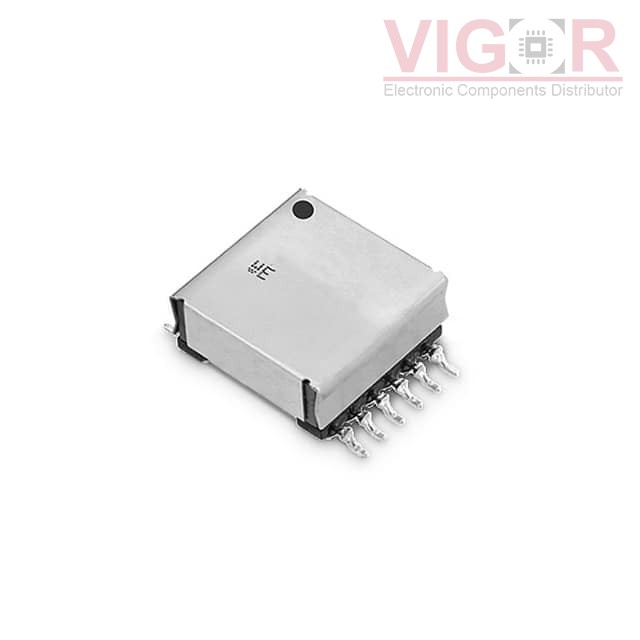

Image is for reference,
please contact us to get the real picture

Part No :: 749196328

Manufacturer: Würth Elektronik Midcom

Description: WE-FLEX FLEXIBLE TRANSFORMER FOR

Catalog: Switching Converter, SMPS Transformers

DataSheet: 749196328 PDF

Availability: 0 pieces

Unit Price: ~~$6.63600~~

Current price of 749196328 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

749196328 Specifications

Type	Description
Series:	WE-FLEX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flexible
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	14.2µH @ 100kHz
Frequency:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.630" L x 0.689" W (16.00mm x 17.50mm)
Height - Seated (Max):	0.354" (8.99mm)
Footprint:	0.870" L x 0.689" W (22.10mm x 17.50mm)
Style:	-
