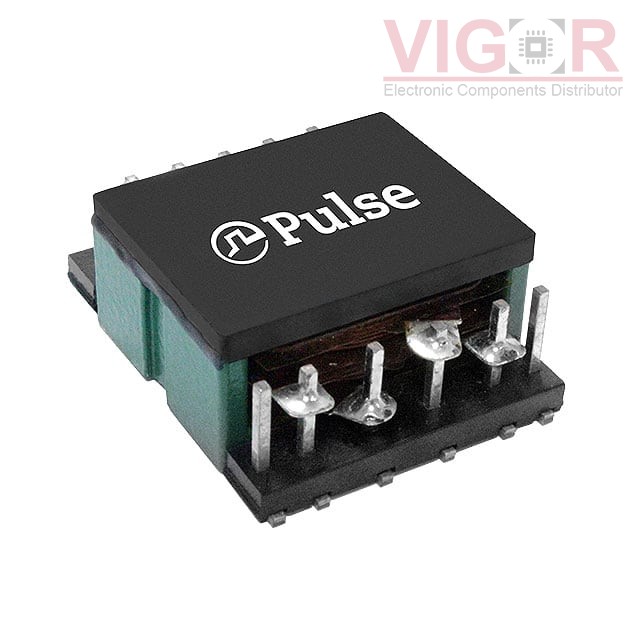

PH0815CNL

Part No :: PH0815CNL

Manufacturer: PulseLarsen Antenna

VIGOR # :: 1989277

Description: XFMR DC/DC CONV SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: PH0815CNL PDF

Country of origin: -

Date code: -

PH0815CNL Specifications

Type	Description
Series:	PH08XXCNL
Package:	Tray
Part Status:	Active
Type:	For DC/DC Converters
Applications:	-
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	-
Frequency:	200 ~ 700kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.850" L x 0.970" W (21.59mm x 24.65mm)
Height - Seated (Max):	0.388" (9.85mm)
Footprint:	0.850" L x 0.970" W (21.59mm x 24.65mm)
Style:	Planar
