760390011

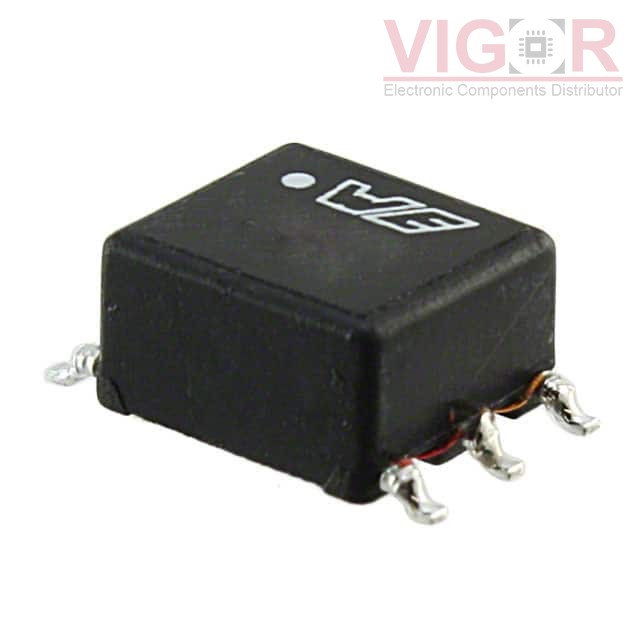

Image is for reference,
please contact us to get the real picture

Part No :: 760390011

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER 1MH SMD

Catalog: Switching Converter, SMPS Transformers

DataSheet: 760390011 PDF

Availability: 628 pieces

Unit Price: ~~$1.90000~~

Current price of 760390011 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760390011 Specifications

Type	Description
Series:	WE-PP, MID-PPTI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	SN6501
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	1mH @ 10kHz
Frequency:	10kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max):	0.170" (4.32mm)
Footprint:	0.265" L x 0.395" W (6.73mm x 10.05mm)
Style:	-
