760895641

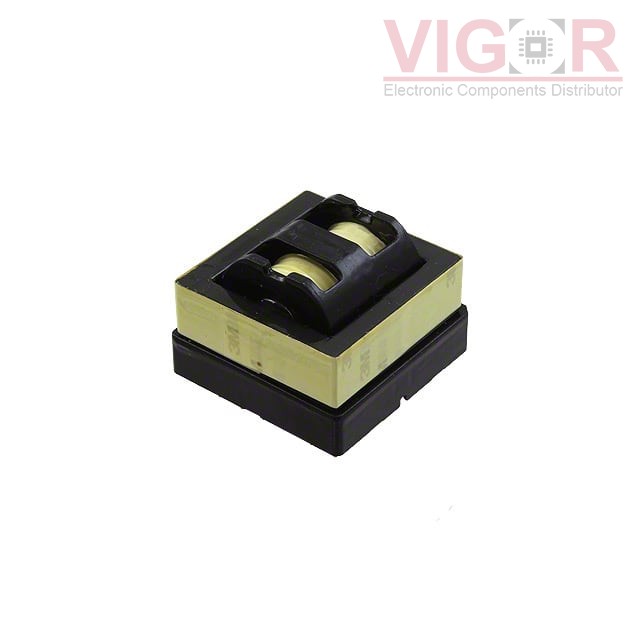

Image is for reference,
please contact us to get the real picture

Part No :: 760895641

Manufacturer: Würth Elektronik Midcom

Description: WE-LLCR RESONANT CONVERTER 500H

Catalog: Switching Converter, SMPS Transformers

DataSheet: 760895641 PDF

Availability: 5 pieces

Unit Price: ~~$17.68000~~

Current price of 760895641 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760895641 Specifications

Type	Description
Series:	WE-LLCR
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Resonant Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	360 ~ 400V
Voltage - Auxiliary:	-
Voltage - Isolation:	4000Vrms
Inductance @ Frequency:	500µH @ 100kHz
Frequency:	70 ~ 120kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	1.692" L x 1.732" W (43.00mm x 44.00mm)
Height - Seated (Max):	1.181" (30.00mm)
Footprint:	1.692" L x 1.732" W (43.00mm x 44.00mm)
Style:	-
