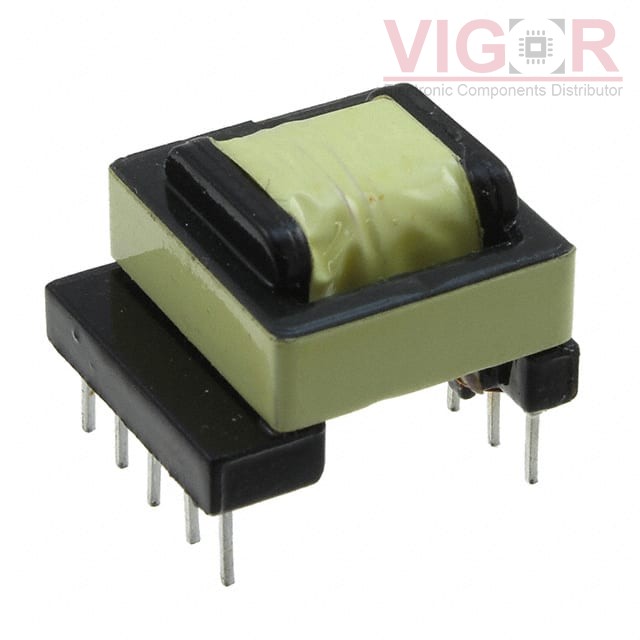

750813049

Part No :: 750813049

Manufacturer: Würth Elektronik Midcom

Description: OFFLINE XFRM WE-UNIT TI LM3447

Catalog: Switching Converter, SMPS Transformers

DataSheet: 750813049 PDF

Availability: 0 pieces

Unit Price: ~~$6.16000~~

Current price of 750813049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

750813049 Specifications

Type	Description
Series:	WE-UNIT
Package:	Tray
Part Status:	Active
Type:	For DC/DC Converters
Applications:	LED Drivers, AC/DC SMPS
Intended Chipset:	LM3447
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	127 ~ 191V
Voltage - Auxiliary:	15V @ 20mA
Voltage - Isolation:	3000Vrms
Inductance @ Frequency:	1.3mH @ 70kHz
Frequency:	70kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	0.665" L x 0.740" W (16.90mm x 18.80mm)
Height - Seated (Max):	0.529" (13.44mm)
Footprint:	0.665" L x 0.740" W (16.90mm x 18.80mm)
Style:	-
