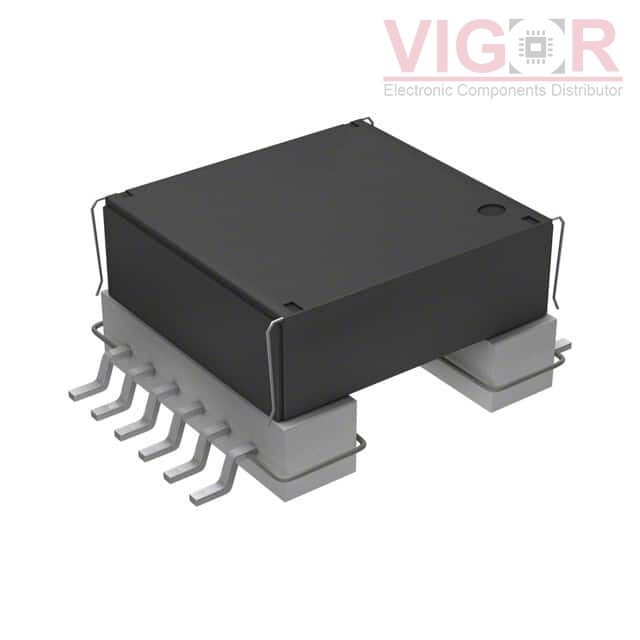

PCA20EFD-U02S002

Part No :: PCA20EFD-U02S002

Manufacturer: TDK Corporation

Description: INDUCTOR/XFRMR 87.7UH MULTIWIND

Catalog: Switching Converter, SMPS Transformers

DataSheet: PCA20EFD-U02S002 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PCA20EFD-U02S002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PCA20EFD-U02S002 Specifications

Type	Description
Series:	PCA20EFD
Package:	Tray
Part Status:	Obsolete
Type:	Configurable (For DC/DC)
Applications:	Capacitor Charger
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	Parallel 87.7µH @ 10kHz, Series 3.2mH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	0.866" L x 0.850" W (22.00mm x 21.60mm)
Height - Seated (Max):	0.472" (12.00mm)
Footprint:	0.866" L x 1.173" W (22.00mm x 29.80mm)
Style:	-

Please confirm the specifications of the products when ordering.
