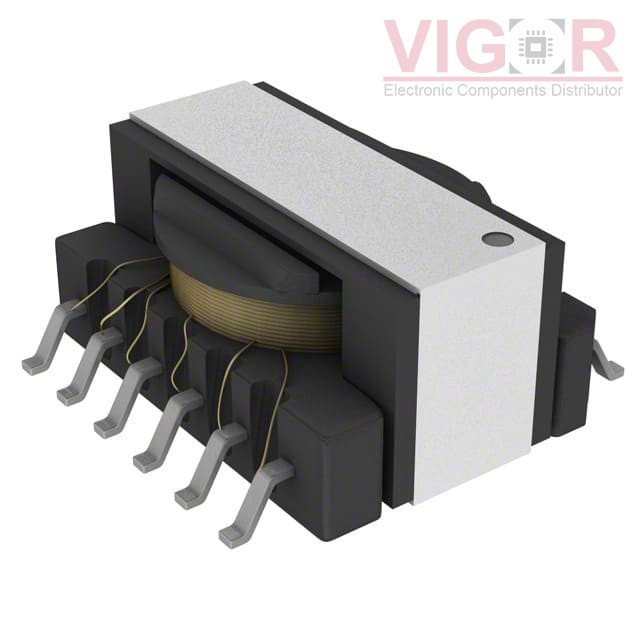

PCA14.5/6ER-U10S002

Part No :: PCA14.5/6ER-U10S002

Manufacturer: TDK Corporation

Description: INDUCTOR/XFRMR 3.2UH MULTIWIND

Catalog: Switching Converter, SMPS Transformers

DataSheet: PCA14.5/6ER-U10S002 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PCA14.5/6ER-U10S002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PCA14.5/6ER-U10S002 Specifications

Type	Description
Series:	PCA14.5/6ER
Package:	Tray
Part Status:	Obsolete
Type:	Configurable (For DC/DC)
Applications:	Capacitor Charger
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	Parallel 3.2µH @ 10kHz, Series 116µH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	0.642" L x 0.472" W (16.30mm x 12.00mm)
Height - Seated (Max):	0.307" (7.80mm)
Footprint:	0.642" L x 0.661" W (16.30mm x 16.80mm)
Style:	-
