AM20C-1215SZ vs EC4SBW-24S15N

This detailed comparison of AM20C-1215SZ and EC4SBW-24S15N in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

AM20C-1215SZ

DComponents

Request For Quote

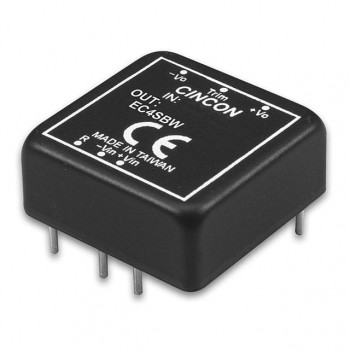

EC4SBW-24S15N

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	DComponents	Cincon
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 15V 20W	DC DC CONVERTER 15V 20W
In Stock	1 330	1 718
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	AM20C-Z (20W)	EC4SBW (20W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	18V	36V
Voltage - Output 1	15V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.33A	1.33A
Power (Watts)	20 W	20 W
Voltage - Isolation	1.6 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Adjustable Output, Remote On/Off	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 75°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	89%	89%
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active Low
Approval Agency	CE, cURus	-
Standard Number	-	-
