HPQ-8.3/22-D48P-C vs HPQ-8.3/22-D48NB-C

This detailed comparison of HPQ-8.3/22-D48P-C and HPQ-8.3/22-D48NB-C in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

HPQ-8.3/22-D48P-C

Murata Power Solutions

Request For Quote

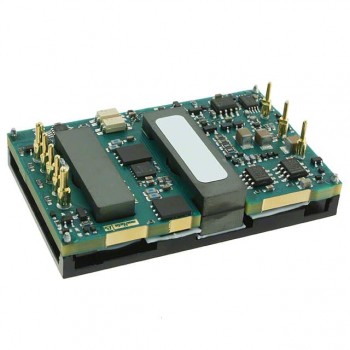

HPQ-8.3/22-D48NB-C

Murata Power Solutions

Request For Quote

Specifications Hide identical items

Manufacturer	Murata Power Solutions	Murata Power Solutions
Package / Case	8-DIP Module, 1/4 Brick	8-DIP Module, 1/4 Brick
Description	DC DC CONVERTER 8.3V 183W	DC DC CONVERTER 8.3V 183W
In Stock	465	1 638
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Obsolete
Series	HPQ (300W)	HPQ (300W)
Package	Tray	Tray
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	8.3V	8.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	22A	22A
Power (Watts)	183 W	183 W
Voltage - Isolation	2.25 kV	2.25 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	92.5%	92.5%
Size / Dimension	2.30" L x 1.45" W x 0.40" H (58.4mm x 36.8mm x 10.2mm)	2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active Low
Approval Agency	-	-
Standard Number	-	-
