PT5105CT vs PT5109J

This detailed comparison of PT5105CT and PT5109J in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PT5105CT

Texas Instruments

Request For Quote

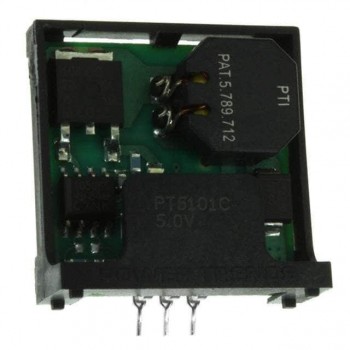

PT5109J

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	3-SMD Module	3-SMD Module
Description	DC DC CONVERTER 6.5V 6W	DC DC CONVERTER 5.6V 5W
In Stock	486	1 059
Mounting Type	Surface Mount	Surface Mount
Part Status	Obsolete	Obsolete
Series	PT5100	PT5100
Package	Tape & Reel (TR)	Tray
Type	Linear Regulator Replacement	Linear Regulator Replacement
Number of Outputs	1	1
Voltage - Input (Min)	10.5V	9.6V
Voltage - Input (Max)	38V	38V
Voltage - Output 1	6.5V	5.6V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1A	1A
Power (Watts)	6 W	5 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, OTP	OCP, OTP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	90%	90%
Size / Dimension	1.02" L x 1.00" W x 0.38" H (25.9mm x 25.4mm x 9.7mm)	1.39" L x 1.00" W x 0.38" H (35.3mm x 25.4mm x 9.7mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
