PT78NR252H vs 78ST233HC

This detailed comparison of PT78NR252H and 78ST233HC in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PT78NR252H

VIGOR

Request For Quote

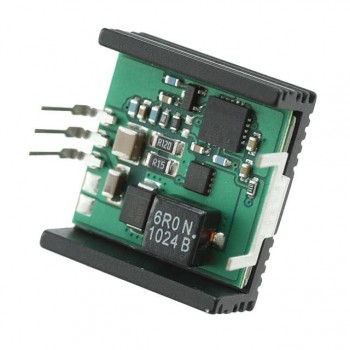

78ST233HC

VIGOR

Request For Quote

Specifications Hide identical items

Manufacturer	VIGOR	VIGOR
Package / Case	3-SIP Module	3-SIP Module
Description	SWITCHING REGLTR, VOLTAGE-MODE	SWITCHING REGLTR, VOLTAGE-MODE
In Stock	78	200
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Part Status	Obsolete	Obsolete
Series	PT78NR200 (12W)	78ST200
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	7V
Voltage - Input (Max)	15V	15V
Voltage - Output 1	-5.2V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2A	2A
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	0°C ~ 85°C	-40°C ~ 85°C
Efficiency	78%	82%
Size / Dimension	1.01" L x 0.93" W x 0.38" H (25.7mm x 23.6mm x 9.7mm)	0.93" L x 1.01" W x 0.38" H (23.6mm x 25.7mm x 9.7mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
