PT78NR252H vs PT78HT233H

This detailed comparison of PT78NR252H and PT78HT233H in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PT78NR252H

VIGOR

Request For Quote

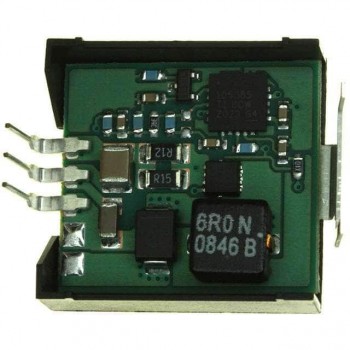

PT78HT233H

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	VIGOR	Texas Instruments
Package / Case	3-SIP Module	3-SIP Module
Description	SWITCHING REGLTR, VOLTAGE-MODE	DC DC CONVERTER 3.3V
In Stock	78	919
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Part Status	Obsolete	Obsolete
Series	PT78NR200 (12W)	PT78HT200
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	15V	15V
Voltage - Output 1	-5.2V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2A	2A
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	0°C ~ 85°C	-40°C ~ 85°C
Efficiency	78%	80%
Size / Dimension	1.01" L x 0.93" W x 0.38" H (25.7mm x 23.6mm x 9.7mm)	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
