PT78NR252H

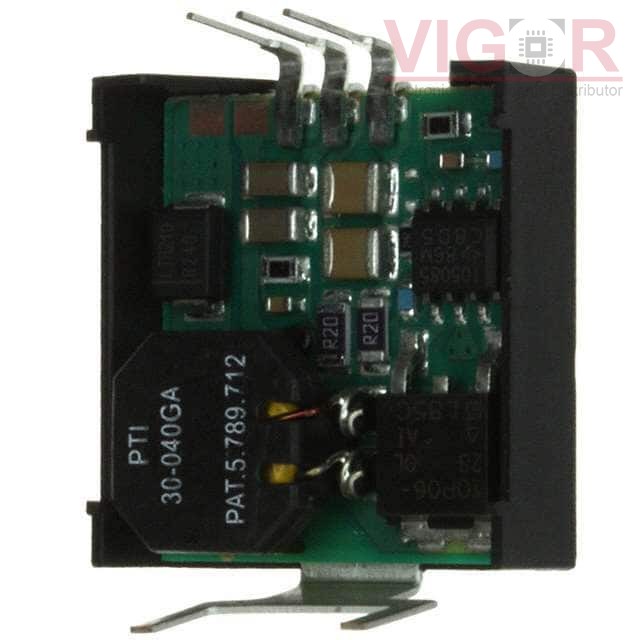

Image is for reference,
please contact us to get the real picture

Part No :: PT78NR252H

Manufacturer: VIGOR

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Oct 01 - Oct 05 2025

DataSheet: PT78NR252H PDF

Availability: 78 pieces

Unit Price: ~~$15.22000~~

Current price of PT78NR252H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT78NR252H Specifications

Type	Description
Series:	PT78NR200 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	15V
Voltage - Output 1:	-5.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	0°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	1.01" L x 0.93" W x 0.38" H (25.7mm x 23.6mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
