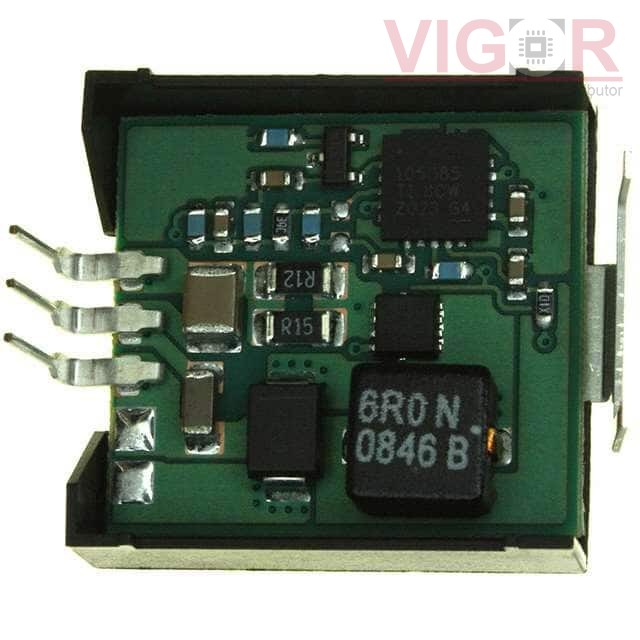

PT78HT205H

Part No :: PT78HT205H

Manufacturer: Texas Instruments

VIGOR # :: 4997729

Description: DC DC CONVERTER 5V

Catalog: DC DC Converters

DataSheet: PT78HT205H PDF

Country of origin: -

Date code: -

PT78HT205H Specifications

Type	Description
Series:	PT78HT200
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	28V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT78ST105H Match 82%	Texas Instruments DC DC CONVERTER 5V	PT78HT205H vs PT78ST105H
78SR105HC Match 82%	Texas Instruments DC DC CONVERTER 5V	PT78HT205H vs 78SR105HC
78HT205HC Match 100%	Texas Instruments DC DC CONVERTER 5V	PT78HT205H vs 78HT205HC
78ST105HC Match 82%	Texas Instruments DC DC CONVERTER 5V	PT78HT205H vs 78ST105HC
PT78HT253H Match 93%	Texas Instruments DC DC CONVERTER 5.25V	PT78HT205H vs PT78HT253H
78HT253HC Match 93%	Texas Instruments DC DC CONVERTER 5.25V	PT78HT205H vs 78HT253HC
