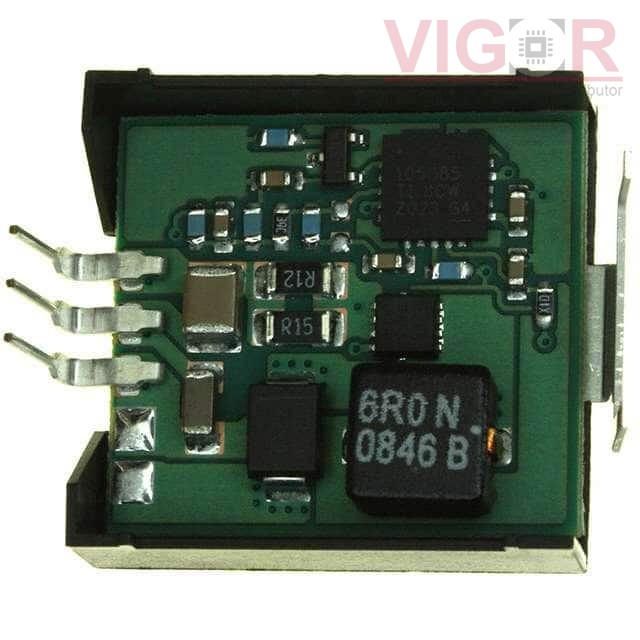

PT78HT253H

Part No :: PT78HT253H

Manufacturer: Texas Instruments

VIGOR # :: 5034611

Description: DC DC CONVERTER 5.25V

Catalog: DC DC Converters

DataSheet: PT78HT253H PDF

Country of origin: -

Date code: -

PT78HT253H Specifications

Type	Description
Series:	PT78HT200
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	28V
Voltage - Output 1:	5.25V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT78ST105H Match 75%	Texas Instruments DC DC CONVERTER 5V	PT78HT253H vs PT78ST105H
78SR105HC Match 75%	Texas Instruments DC DC CONVERTER 5V	PT78HT253H vs 78SR105HC
PT78HT205H Match 93%	Texas Instruments DC DC CONVERTER 5V	PT78HT253H vs PT78HT205H
78HT205HC Match 93%	Texas Instruments DC DC CONVERTER 5V	PT78HT253H vs 78HT205HC
78ST105HC Match 75%	Texas Instruments DC DC CONVERTER 5V	PT78HT253H vs 78ST105HC
78HT253HC Match 100%	Texas Instruments DC DC CONVERTER 5.25V	PT78HT253H vs 78HT253HC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1535

Shipped from

HK warehouse

Expected Shipping Date

Sep 08 - Sep 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT78HT253H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
