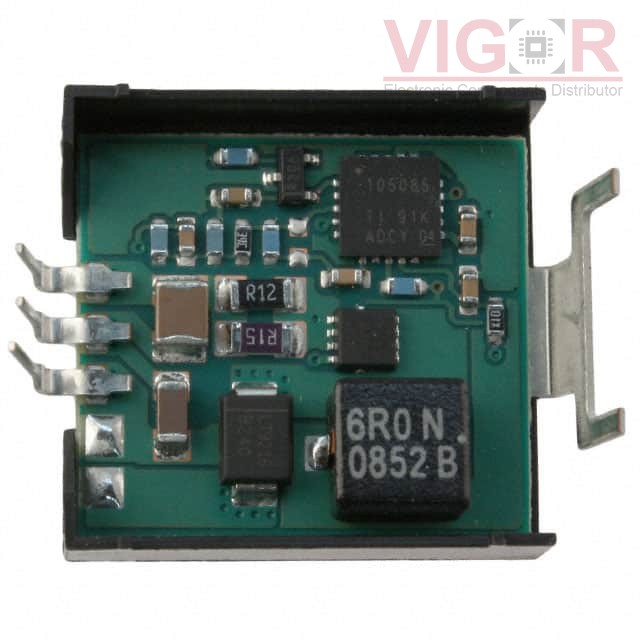

78HT253HC

Part No :: 78HT253HC

Manufacturer: Texas Instruments

VIGOR # :: 5042841

Description: DC DC CONVERTER 5.25V

Catalog: DC DC Converters

DataSheet: 78HT253HC PDF

Country of origin: -

Date code: -

78HT253HC Specifications

Type	Description
Series:	78HT200
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7.25V
Voltage - Input (Max):	28V
Voltage - Output 1:	5.25V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
78SR105HC Match 75%	Texas Instruments DC DC CONVERTER 5V	78HT253HC vs 78SR105HC
78ST165HC Match 52%	Texas Instruments DC DC CONVERTER 6.5V	78HT253HC vs 78ST165HC
78HT205HC Match 93%	Texas Instruments DC DC CONVERTER 5V	78HT253HC vs 78HT205HC
78ST105HC Match 75%	Texas Instruments DC DC CONVERTER 5V	78HT253HC vs 78ST105HC
78ST106HC Match 63%	Texas Instruments DC DC CONVERTER 6V	78HT253HC vs 78ST106HC
