R-789.0-0.5 vs SR05S09

This detailed comparison of R-789.0-0.5 and SR05S09 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

R-789.0-0.5

RECOM Power

Request For Quote

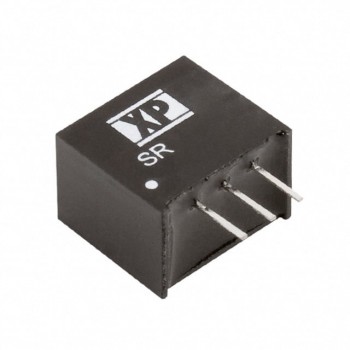

SR05S09

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	XP Power
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 9V 5W	DC DC CONVERTER 9V 5W
In Stock	66	830
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	INNOLINE R-78-0.5	SR
Package	Tube	Tube
Type	Linear Regulator Replacement	Linear Regulator Replacement
Number of Outputs	1	1
Voltage - Input (Min)	11V	11V
Voltage - Input (Max)	32V	34V
Voltage - Output 1	9V	9V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	500mA	500mA
Power (Watts)	5 W	5 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	96%	96%
Size / Dimension	0.45" L x 0.30" W x 0.40" H (11.5mm x 7.5mm x 10.2mm)	0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
